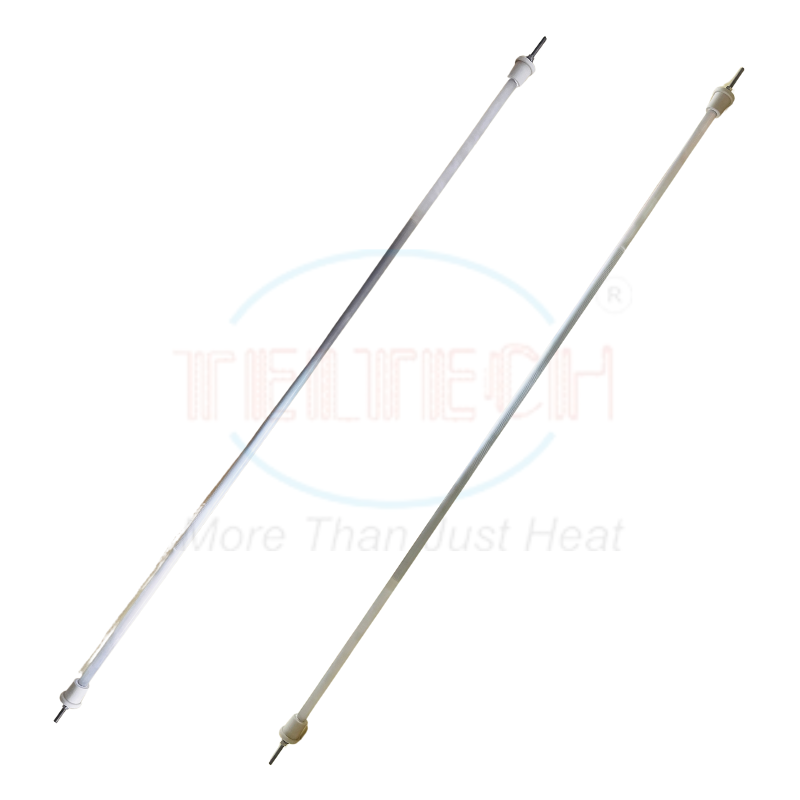

Infrared Heaters

Infrared Heaters

Infrared heaters deliver radiant heat energy directly to objects without relying on convection. This ensures rapid heating with minimal heat loss. Available in quartz, ceramic and halogen types, they are ideal for processes requiring fast heat-up times and energy efficiency.

Applications

  • Drying paints and coatings in automotive industries.
  • Heating textiles and printing materials.
  • Baking and curing in food processing.

Technical Data

ParameterValue/Range
Voltage120V, 240V, 480V
Wattage500W to 15 kW
WavelengthShort (0.78 µm), Medium (2-3 µm), Long (>3 µm)
MaterialQuartz, Ceramic, Halogen
Max Operating TempQuartz: 760°C, Ceramic: 1000°C
Lifespan5,000 to 20,000 operating hours
Mounting StyleSuspended, Fixed Frames
Reflector MaterialPolished Aluminium, Stainless Steel
